Wheelchair-Accessible Bathroom Dimensions: Ottawa 2026 Guide

By Curtis McGrath, Project Coordinator | 18 years renovation experience | Bytown Better Bathtubs and Showers | Updated September 2026

Wheelchair-accessible bathroom dimensions are the difference between a room that looks accessible and one that actually works. A wheelchair does not care what the tile costs. It cares whether it can get through the door, turn around, roll into the shower, and pull up to the sink. We build accessible bathrooms across Ottawa, Kanata, Nepean, Barrhaven, and Orleans, and every one starts with the same clearances. For the full pricing picture, our bathroom remodeling cost guide sets out every project size.

Why the Clearances Matter More Than the Fixtures

You can buy the best grab bars and the widest roll-in shower on the market, but if the room cannot fit a turning circle, none of it works. The dimensions are set primarily by CSA B651 and the Ontario Building Code, and while a private home is not legally bound by the AODA rules that govern public washrooms, those standards are the design targets for a bathroom that a wheelchair user can actually live with.

The honest catch is that code minimums are minimums. A manual wheelchair turns in about 1,500 mm, Ontario’s building code uses 1,700 mm for a public universal washroom, and a power wheelchair or scooter can need more again. Designing to the minimum leaves no margin, so we plan the layout around the specific person and their equipment, not just the smallest number that passes.

Wheelchair-Accessible Bathroom Dimensions That Actually Work

1. Turning space: 1,500 mm (60 inches)

This is the clear circle a manual wheelchair needs to make a full turn. It can overlap the knee space under the vanity and the curbless shower floor, so a well-planned room fits it without ballooning in size. Ontario’s building code asks for 1,700 mm in a public universal washroom, which is the better target if a power chair will use the room. Design the whole layout around this circle first, then place the toilet, shower, and vanity around it.

2. Doorway: 850 mm (33.5 inches) clear

Clear width is measured with the door open, from the door face to the opposite frame, not the frame size. A standard interior door rarely gives enough, so we widen the opening or fit offset hinges, which can gain up to 50 mm without a full frame rebuild.

3. Curbless shower with a 13 mm (half inch) threshold

A roll-in shower needs a zero or near-zero threshold and a linear drain so a wheelchair rolls straight in. Ontario’s code minimum for a barrier-free shower is 1,500 mm wide by 900 mm deep (60 by 35 inches), with a clear space of the same width in front; where the room allows, we plan more depth so a chair can roll fully in. A folding bench and a handheld shower on a slide bar make it usable for transfers and for a caregiver.

4. Grab bars: 840 to 920 mm (33 to 36 inches) high

Grab bars are the single most safety-critical feature and the most commonly installed wrong. Mount them to the top of the gripping surface at 840 to 920 mm above the floor, blocked into solid framing, 38 to 50 mm (about 1.5 to 2 inches) off the wall, in a colour that contrasts with the wall so they are easy to see.

5. Toilet and vanity heights

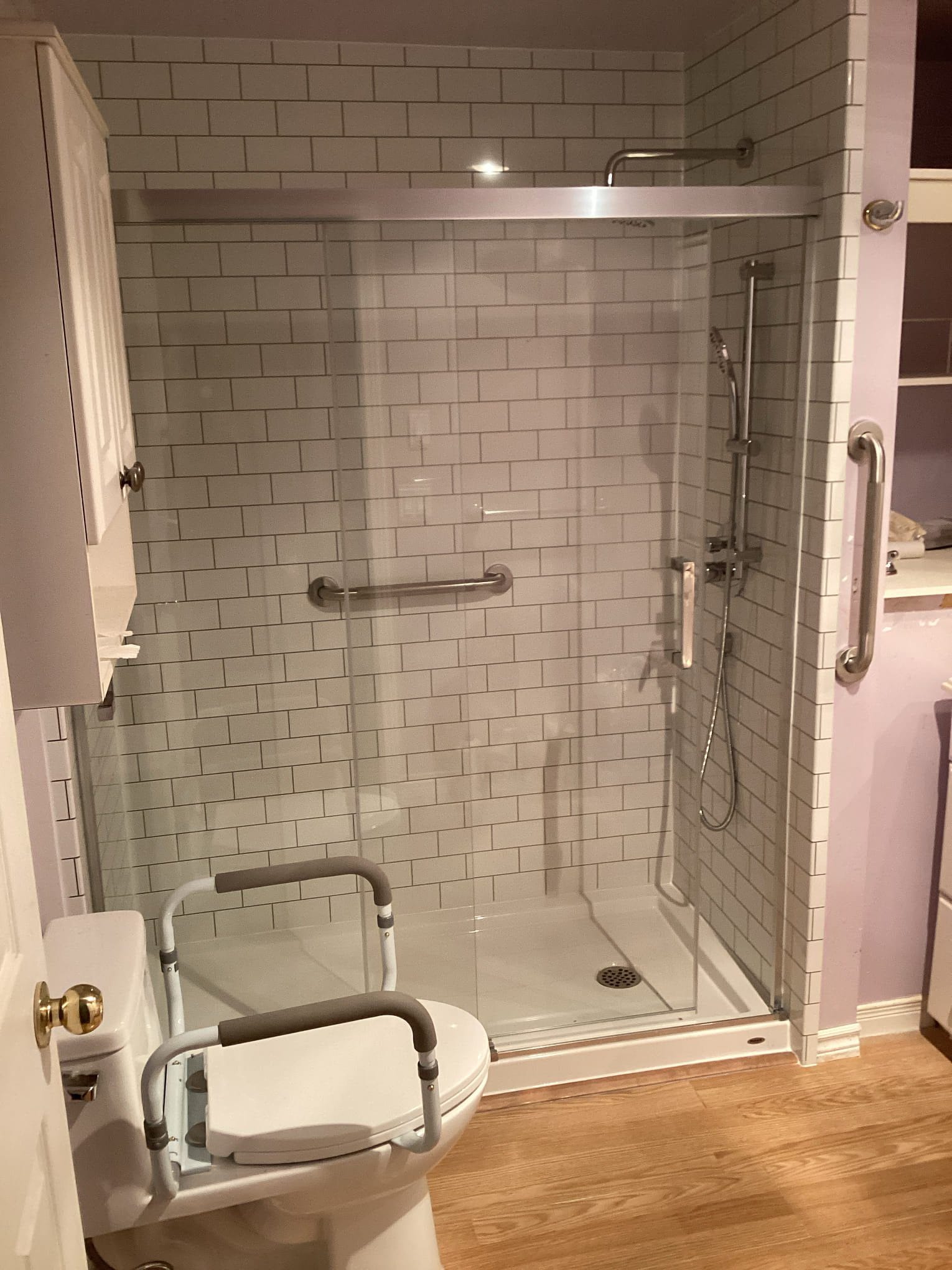

An accessible toilet seat sits 430 to 485 mm (17 to 19 inches) above the floor for safe transfers, with the centreline 460 to 480 mm (about 18 to 19 inches) from the side wall. The vanity needs open knee clearance underneath, a lever or touchless faucet, and a mirror with its bottom edge no higher than 1,000 mm (about 39 inches).

Fitting It Into a Real Ottawa Bathroom

The biggest question with wheelchair-accessible bathroom dimensions is almost always space. A home has no fixed minimum room size, but the room has to hold the 1,500 mm turning circle alongside the toilet, the roll-in shower and the vanity, overlapping only the knee space under the vanity and the curbless shower floor. For reference, Ontario’s building code asks for at least 1,700 mm between walls in a public universal washroom. Squeezing it into a layout that was never planned for it costs more and compromises more.

Where an existing Ottawa bathroom is too tight, the practical move is to expand it. Non-loadbearing walls with no plumbing, HVAC, or major electrical inside them are the easiest to move, so borrowing space from a neighbouring closet is often cheaper than reworking the plumbing wall. We assess what can move before we quote, so the number reflects the real path to the clearances rather than a wish.

What an Accessible Bathroom Renovation Costs in Ottawa

Three things move the number on wheelchair-accessible bathroom dimensions: whether the room already has the space or a wall has to move, the level of accessibility features, and the finishes. Here are our approved 2026 prices for the scopes an accessible bathroom usually falls into.

The entry point is a same-footprint accessible renovation. Moving a wall to create the turning circle, or adding a made-to-order walk-in therapeutic tub, is what pushes the project higher. Our full cost guide lays out every size, and a bathroom remodel without accessibility features is a useful comparison.

Why Ottawa Families Choose Bytown Bath

We renovate bathrooms only. On an accessible bathroom that focus matters most, because a few millimetres in the wrong place is the difference between independence and a room that does not work.

Every quote is written and upfront, our installs are handled by professionally trained installers, and we back the product and labour with a written warranty. We measure the clearances against the person who will use the room, tell you plainly whether the space works or a wall has to move, and build to the numbers that actually matter. Payment is 50 percent on booking and 50 percent on completion.

Frequently Asked Questions

What is the minimum size for a wheelchair-accessible bathroom?

There is no fixed minimum for a home. The room has to fit a 1,500 mm turning circle alongside the toilet, a roll-in shower and a knee-clearance vanity, and Ontario’s building code asks for at least 1,700 mm between walls in a public universal washroom. Fitting that into a tighter room usually means moving a wall.

How wide does the bathroom door need to be?

At least 850 mm (33.5 inches) of clear width, measured with the door open from the door face to the opposite frame. A standard door rarely gives enough, so we widen the opening or use offset hinges to gain space.

How high should grab bars be mounted?

840 to 920 mm (33 to 36 inches) above the floor to the top of the gripping surface, blocked into solid framing, 38 to 50 mm (about 1.5 to 2 inches) off the wall, and in a colour that contrasts with the wall for visibility.

Does a private home have to meet AODA standards?

No. AODA governs public and commercial washrooms. A private home is not legally bound by it, but CSA B651 and these dimensions are the design targets for a bathroom a wheelchair user can genuinely use, so we build to them.

How much does an accessible bathroom renovation cost in Ottawa?

A full accessible renovation fits our complete bathroom renovation scope from $20,000 CAD, or a curbless roll-in shower from $13,000 CAD. Moving a wall to create the turning circle, or adding a made-to-order walk-in therapeutic tub, raises it. A precise number needs a walkthrough.
